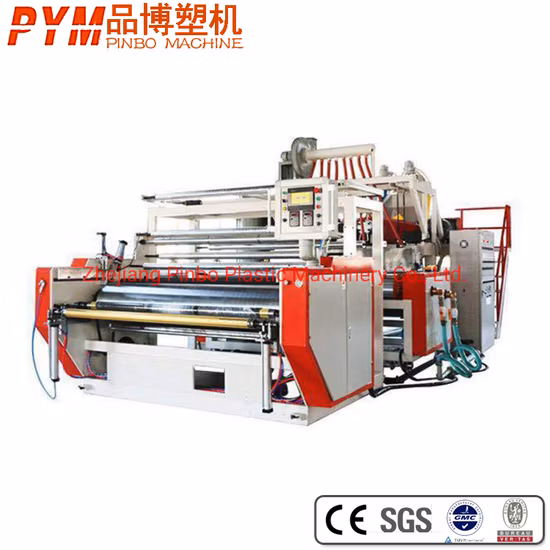

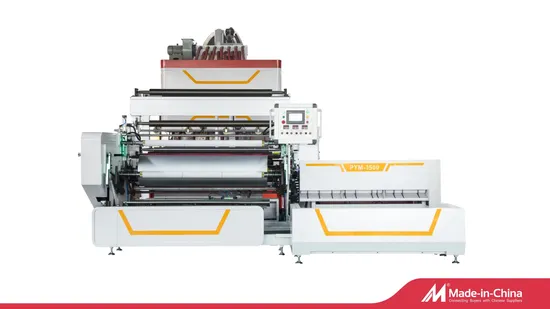

3/5 Layer High Speed Cast Cling PE Stretch Film Extruder Machine Plant for LDPE/CPE/TPE
3/5 layer High speed cast cling stretch film extruder plant for LDPE/CPE/TPE Product Specification Product Advantages Ma
Basic Info
Model NO. | PB-L65/90/65X1850 |
After-sales Service | Life Time |
Warranty | 1 Year |
Type | Plastic Extruder |
Plastic Processed | LDPE/CPE/TPE |
Product Type | Stretch Film Machine |
Feeding Mode | Multiple Feed |
Assembly Structure | Separate Type Extruder |
Screw | Multi-Screw |
Exhaust | Don′t Exhaust |
Automation | Automatic |
Computerized | Computerized |
Vlotage | Customized |
Power (Kw) | 180kw |
Screw Diameter | 90mmx1, 65mmx2 |
Screw L/D Ratio | 30:1 |
Output (Kg/H) | 180 - 280kgs |
Weight | 15t |
Package | Plastic Film Wrapping |
Inverter | Delta Taiwan |
Transport Package | Standard Packing |
Specification | L12500/W5500/H3800 |
Trademark | PYM |
Origin | Zhejiang Province Wenzhou City |
HS Code | 84778000 |
Production Capacity | 200sets/Year |
Product Description
3/5 layer High speed cast cling stretch film extruder plant for LDPE/CPE/TPE
Product Specification
Model No. | PYM-65/90/65*1850 |
Screw Diameter | 65/90/65mm |
Screw L/D | 30:1 |
Screw Speed | 50-150rpm |
Layer Structure | ABC/ACBCA |
Film material | PE |
Film Width | 1500mm/3*500mm |
Film Thickness | 0.01-0.05mm |
Electric power supply | Customized, Standard is 380V/50HZ/3P |
Total Power | 130KW |
Capacity | 180-300Kg/h |
Total weight | 13.5T |
Dimension | 13.5M*3.5M*3.5M |
- Easy operating, long life, energy saving
- Stable and reasonable extrusion
- High quality T-die for excellent film evenness and stability
- Enhanced cooling system
(adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller) - Advanced oscillation (swing) system
- Highest winding speed (up to 200m/min) among similar stretch film machines
- High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min
- Optional full automatic thickness gauge
- Excellent stretch film rolls quality for both hand use rolls and stretch use rolls
