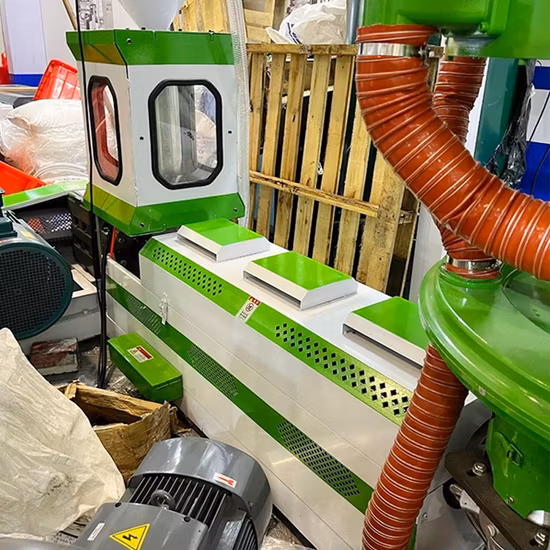

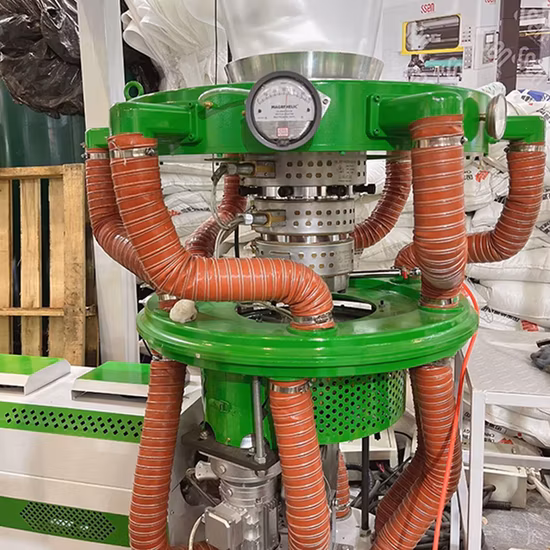

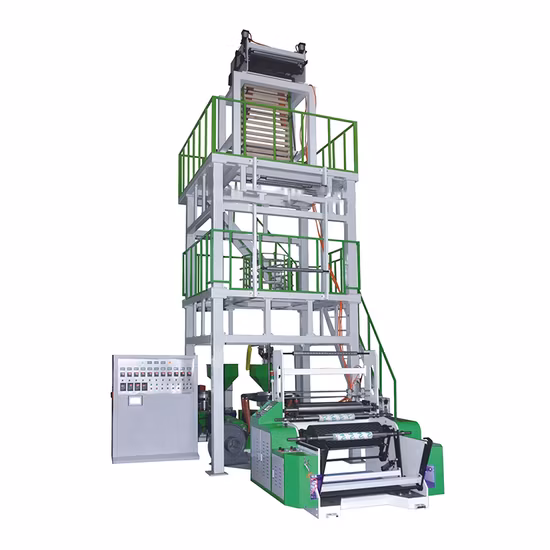

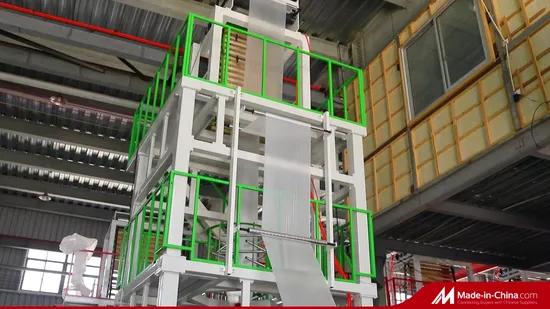

Plastic PE Film Blowing Machine Extruder Blown Film Machine

Basic Info

Model NO.	SJ-A50/55/65/65-1
Screw Diameter	65mm
Automation	Non-Automatic
Computerized	Non-Computerized
Machine Weight	2t
Certification	CE
Film Width	1200mm
Film Thickness	0.008-0.10mm
Rewinder Station	Single Station
Diameter	50-65
Name	Plastic PE Film Blowing Machine
Warranty	One Year
Material	HDPE , LDPE
Max.Extrudsion Output	35-70kgs
Size	100-1200mm
Model	1200mm
Transport Package	Seaworthy
Specification	CE
Trademark	QUEENSENSE
Origin	CHINA
HS Code	8477309000
Production Capacity	35-80kg/h

Product Description



Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.Optional equipment:1. Auto load2. Air compressor3. Special die4. Die rotary device5. Bouble sides winder6. Up and down

Plastic PE film blowing machine :

Model	A50	A55	A65	A65-1
Diameter of screw	φ 50	φ 55	φ 65	φ 65
Rcduced diameter of film(mm)	100-600	200-800	300-1000	400-1200
Single-face Thickness of film(mm)	0.01-0.10	0.01-0.10	0.01-0.10	0.01-0.10
Max. Extrusion(Kg/h)	35	50	65	80
L/D	28: 1	28: 1	28: 1	28: 1
Power of main moto(kw)	11	15	18.5	22
Power of Tracion main moto(kw)	0.75	1.1	1.5	1.5
Heating Power(kw)	15	18	23	27
Outline diameter(L x W x H) (mm)	4800 x 1900 x 4100	5500 x 2100 x 4700	6500 x 2300 x 4900	6500 x 2500 x 5600
Weight(T)	1.5T	2T	2.3T	2.6T

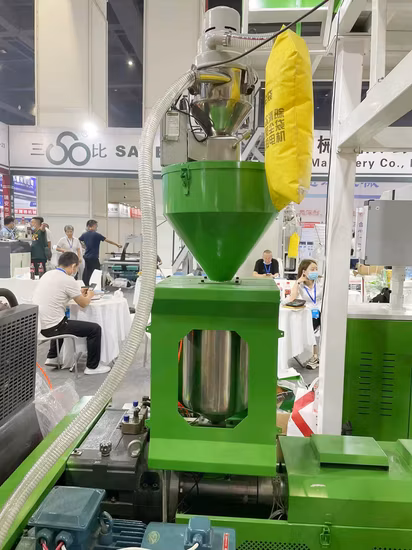

Exhibition show 2017 :
